High efficiency pure sine wave inverter/ charger outputs 4000W continuous power and 12000 surge power, low frequency type, optional 24V or 48V DC input and 110V/ 120V or 220V/ 230V/ 240V AC output voltages, also available with 240V AC input & 120V/ 240V AC split phase output, real-time LCD display, easy to install, with protections against overload, over-temperature, low battery and overcharge, ideal for powering most household appliances.
Features
- 4000 Watt continuous output power
- Peak power is 3 times of rating power
- Pure sine wave output, available for sensitive loads such as air conditioner, motor door, etc.
- Fast and powerful inverter charger, 3-step progressive charging, 7 battery type selector
- High power factor
- Automatically transfer between battery and line mode
- Microprocessor control guarantees the high reliability
- Optional remote control function
- Multi safety protections against over load, over temperature, over charging, and low battery
- LCD digital display shows voltage, load and battery info in real time
- Apply for split phase system, 2 live lines 1 neutral line, and voltage is 120V/240V
Specification
| Power | 4000W |
| Phase | Single Phase |
| Waveform | Pure Sine Wave |
| AC Input Voltage | 110V/120V AC or 220V/230V/240V AC |
| AC Input Frequency | 50Hz: 41-54Hz or 60Hz: 51-64Hz (Auto detection) |
| Phase & Waveform | Single Phase & Pure Sine Wave (bypass mode sync to input) |
| AC Output Voltage | 110V/ 120V AC or 220V/ 230V/ 240V AC 120V/ 240V AC split phase output Also Available: L1+L2=240V, L1+N=120V, L2+N=120V |
| AC Output Frequency | 50Hz±0.3Hz or 60Hz±0.3Hz (bypass mode sync to input) |
| AC Output Peak Power | 3 times of rating power (12000W) |
| DC Input Battery Voltage | 24V DC/ 48V DC |
| Minimum Start Voltage | 20V DC/ 40V DC |
| DC Input Low Battery Alarm | 10.5±0.3V DC/ 21±0.6V DC/ 42±1.2V DC |
| Low DC Input Shut-down | 10±0.3V DC/ 20±0.6V DC/ 40±1.2V DC |
| DC Input High DC Voltage Alarm & Fault | 16±0.3V DC/ 32±0.6V DC/ 64±1.2V DC |
| High DC Input Recovery | 15.5±0.3V DC/ 31±0.6V DC/ 62±1.2V DC |
| Max Charger Current | 20A/ 35A/ 50A/ 75A/ 90A (According to the inverter model) |
| Protections | Low battery, over charging, over temperature, over load |
| Remote Control | Wired remote control (5m) for power on/ off |
| Indicators | LCD display |

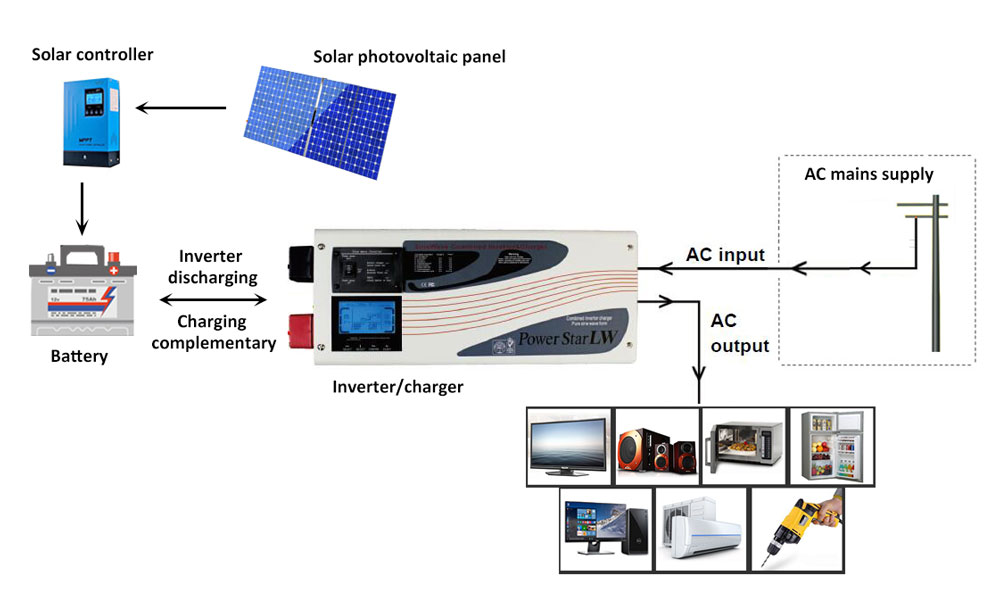

Inverter/Charger Working Principle & Applications

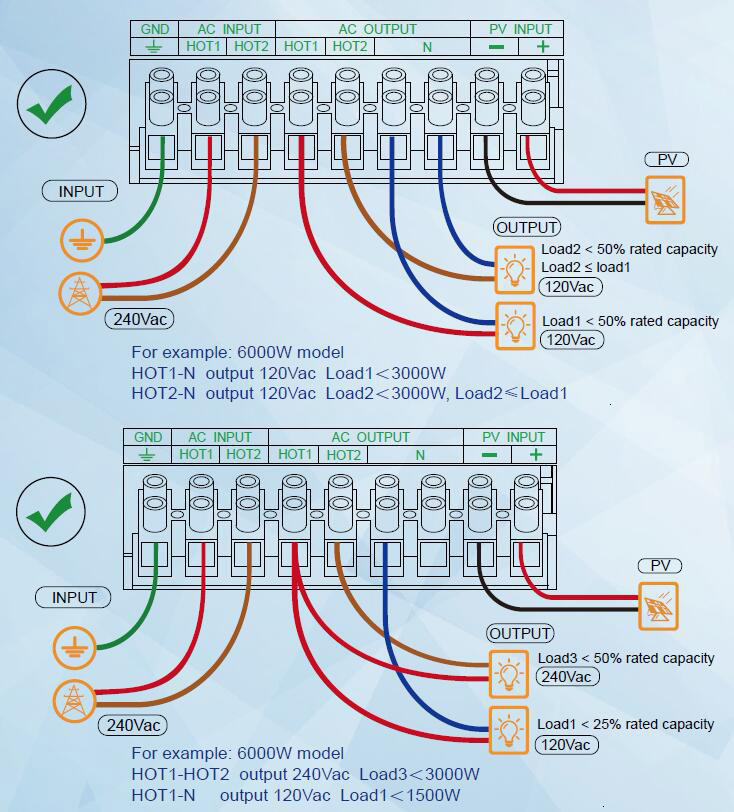

Inverter Split-Phase Output Terminal Description
