10kW 48V Pure Sine Wave Inverter Charger

10000W power charger

Popular 10000 watt pure sine wave inverter/ charger, battery DC output voltage 48V, adjustable 5 stages AC charging current, high reliability. LED/LCD display, enhanced functions setting, via LCD, Man-machine intelligent design, 120 MPTT solar charger, multi-protections against overload, over-temperature, low battery and overcharge.

Features

  • GS Series AC/Solar charging Off grid Hybrid Inverter
  • LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design
  • Built-in 40A/60A optional MPPT solar charger
  • LCD shows the solar capacity
  • Adjustable 5 stages AC charging current. AC charging also can be closed
  • AC/DC priority modes can be set
  • Generator restart signal. (Dry contact)
  • 3 times peak power. Strong loading capacity
  • Overload, output short-circuit protection
  • Apply to Split Phase system, 2 live lines 1 neutral line,voltage is 120/240V

Specification

Power10000W
PhaseSplit Phase
Input Waveformsinusoidal (utility or generator)
Nominal Input VoltageHOT1-HOT2: 240VAC
Max AC input VoltageMax. 280V
AC Input Frequency50Hz: 41-54Hz, 60Hz: 51-64Hz
AC Output Voltage Waveform Sinewave
Nominal Output Frequency50Hz ± 1Hz, 60Hz ± 1Hz
AC Nominal Charger Current20A/ 35A/ 50A/ 70A/ 90A (According to the inverter model) ; adjustable 5 stages charging current
Solar chargerRated Charge Current: Alternative 40A/ 60A
PV Input Voltage range15VDC-40VDC for 12VDC, 30VDC-75VDC for 24VDC, 60-145VDC for 48V
Max.PV open circuit array Voltage12V for 40VDC, 24V for 75VDC, 48V for 145VDC
Charger modeMPPT
Battery Voltage48VDC
Low Battery Alarm42VDC±1.2VDC
Low DC input shut & down40VDC±1.2VDC
High DC input Alarm & Fault64VDC±1.2VDC
DC to AC: 15ms (max)Wired remote control (5m) for power on/ off
IndicatorsLED+LCD Display
Operating Temperature Range0℃~40℃
Storage Temperature-15℃~60℃
CoolingForced air, variable speed fan

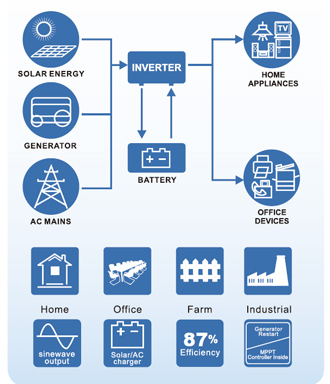

Inverter/Charger Applications

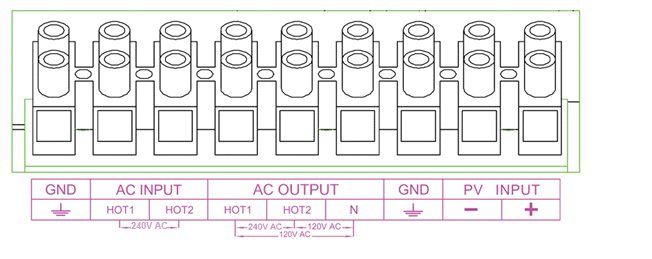

Inverter Split-Phase Output Terminal Description
