High quality pure sine wave inverter provides 300W continuous and 600W peak power, selectable 12/ 24/ 48 volts DC input and 100/ 110/ 120 / 220/ 230/ 240 Volts AC output, 50/ 60Hz, reliable DC to AC power inverter with full safety protections, LED indicator, built-in cooling fan with low noise, ideal for charging devices in your car.
Features
- 300 Watt continuous power and 600 Watt peak power
- Pure sine wave inverter, capable of producing clean & stable electricity
- Soft-start technology
- USB charging port for powering your phone, laptop, etc.
- Aluminum alloy casing with good heat dissipation
- Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
- ON/ OFF switch design, easy to use
- Intelligent cooling fan, long working life
Specification
| Output Power | 300 Watt |
| Peak Power | 600 Watt |
| Input Voltage | DC12V/ DC24V/ DC48V/ DC12V/ DC24V/ DC48V |
| Input DC Voltage Range | 10-15.5V/ 20-31V/ 40-61V/ 10-15.5V/ 20-31V/ 40-61V |
| Output Voltage | 100V AC or 110V AC or 120V AC ±5%/ 220V AC or 230V AC or 240V AC ±5% |
| No-load Current (less-than) | 0.3A/ 0.2A/ 0.1A/ 0.3A/ 0.2A/ 0.1A |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Wave | Pure sine wave |
| Waveform Distortion | THD＜3% (linear load) |
| USB Port | 5V 1A |
| Outlet Type | Universal outlet |
| Max. Working Efficiency | 90% |
| Low Voltage Alarm | 10.5V±0.5V/ 21V±0.5V/ 42V±1V/ 10.5V±0.5V/ 21V±0.5V/ 42V±1V |
| Low Voltage Shutdown | 10V±0.5V/ 20V±0.5V/ 40V±1.5V/ 10V±0.5V/ 20V±0.5V/ 40V±1.5V |
| Low Voltage Recovery | 13V±0.5V/ 24V±0.5V/ 48V±1V/ 13V±0.5V/ 24V±0.5V/ 48V±1V |
| Over Voltage Shutdown | 15.5V±0.5V/ 31V±0.5V/ 61V±1V/ 15.5V±0.5V/ 31V±0.5V/ 61V±1V |
| Over Voltage Recovery | 14.8V±0.5V/ 29.5V±0.5V/ 59V±1V/ 14.8V±0.5V/ 29.5V±0.5V/ 59V±1V |
| Protection | Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection |
| Cooling Way | Intelligent air cooling |
| Remote Control | Wired control (2m) or Wireless control (30m) |
| Operating Temperature | -10℃~ +50℃ |
| Storage Temperature | -30℃~ +70℃ |
| Humidity | ≤90%, non-condensing |
Wiring Diagram
Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

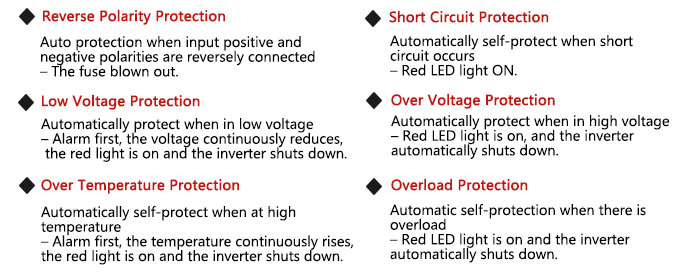

Protection Functions & Applications
